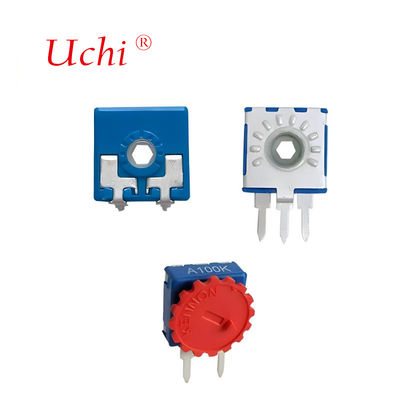

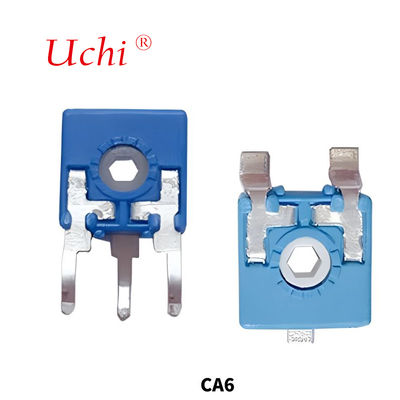

CA6 Spanish Potentiometer Adjustable Resistor Single-turn Carbon Film Trimmer Potentiometer
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Dongguan ， Quảng Đông, Trung Quốc |
| Hàng hiệu: | Uchi |
| Chứng nhận: | SMC |
| Số mô hình: | CA6 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 100pcs |
|---|---|
| Giá bán: | có thể đàm phán |
| Điều khoản thanh toán: | T/T, paypal, Western Union, MoneyGram |
| Khả năng cung cấp: | 50000000pcs mỗi tháng |
|
Thông tin chi tiết |
|||
| Sức chống cự: | 100Ω~5MΩ | Khả năng chịu đựng: | 20% |
|---|---|---|---|
| Công suất định mức: | 0,1W | Kích thước / Kích thước: | 6.5*6.5mm |
| góc xoay cơ học: | 235°±5° | Góc quay điện: | 215°±20° |
| orque: | 0,2 đến 2 Ncm | Dừng mô-men xoắn: | >4 Ncm |
| Làm nổi bật: | Spanish potentiometer carbon film trimmer,single-turn adjustable resistor potentiometer,precision potentiometer with carbon film |
||
Mô tả sản phẩm
The CA6 Spanish potentiometer is a high-precision, stable electronic component used for voltage or current adjustment in circuits. It features a dust-proof design, precision adjustment, strong durability, and a wide working voltage range, making it ideal for small electronics, appliances, and telecommunication equipment. With 12 years of factory experience, the product ensures high cost-effectiveness and reliable performance.
The CA6 Spanish potentiometer has the following product features:
1. Dust proof design can prevent dust and particles from entering the interior of the potentiometer, thereby ensuring the reliability and stability of the potentiometer.
2. Precision adjustment can achieve precise adjustment of voltage or current in the circuit to meet the needs of different application scenarios.
3. Strong durability, using high-quality materials and manufacturing processes to ensure the long service life and wear resistance of the potentiometer.
4. Easy to use, with a simple and intuitive adjustment method, it can easily adjust the voltage or current in the circuit.
5. Wide working voltage range, suitable for different circuits and application scenarios.
6. High cost-effectiveness, reasonable price, excellent performance, suitable for large-scale applications.
| Features | |
|
1)Carbon resistive element. 2)Dust proof enclosure 3)Polyester substrate 4)Also upon request: 5)Wiper positioned at 50% or fully clockwise 6)Supplied in magazines for automatic insertion 7)Long life model CA-6E(10000cycles 8)Without crimping model.CA-6SC 9)Housing available in Self extinguishable plastic UL 94V-0 |
|
| MECHANICAL SPECIFICATIONS | |
|
1)Mechanical rotation angle : 235°±5° 2)Electrical rotation angle: 215°±20° 3)Torque :0.2 to 2 Ncm 4)Stop torque: >4 Ncm |
|
| ELECTRICAL SPECIFICATIONS | |
|
1)Range of value:220Ω≤Rn≤1MΩ (Decad.1.0-2.0-2.2-2.5-4.7-5.0) 2)Tolerance 220Ω≤Rn≤1MΩ ±20% ;1MΩ≤Rn≤5MΩ ±30% 3)Max.voltage:100 VDC(lin) 125VDC(no lin) 4)Nominal Power: 50(122°F) 0.1W(lin) 0.05W( no lin) 5)Taper (log.&alog.only Rn≥1k)lin;log;alog 6)Residual resistance:≤5.10-3Rn(2ohm) 7)Equivalent noise resistance:≤3% Rn(3Ω) 8)Operating temperature:(-25+70)(-13°F+158°F) |
Product Size
This potentiometer is applied to small electronic,appliances,measurement and test equipment,alarms, switches, telecommunication equipment,alarm systems etc.
