2WDD35D-4 10k Linear Dual Potentiometer Resistance Rotary Potentiometer
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Dongguan ， Quảng Đông, Trung Quốc |
| Hàng hiệu: | Uchi |
| Chứng nhận: | SMC |
| Số mô hình: | 2WDD35D |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 100pcs |
|---|---|
| Giá bán: | có thể đàm phán |
| Điều khoản thanh toán: | T/T, paypal, Western Union, MoneyGram |
| Khả năng cung cấp: | 50000000pcs mỗi tháng |
|
Thông tin chi tiết |
|||
| Sức chống cự: | 1kΩ~10kΩ | Khả năng chịu đựng: | ±15% |
|---|---|---|---|
| Nhiệt độ hoạt động: | -55oC~ +125oC | Công suất định mức: | 2W (@70°C) |
| Làm nổi bật: | 10k linear potentiometer with dual resistance,rotary potentiometer for precision control,dual potentiometer with 10k resistance |
||
Mô tả sản phẩm

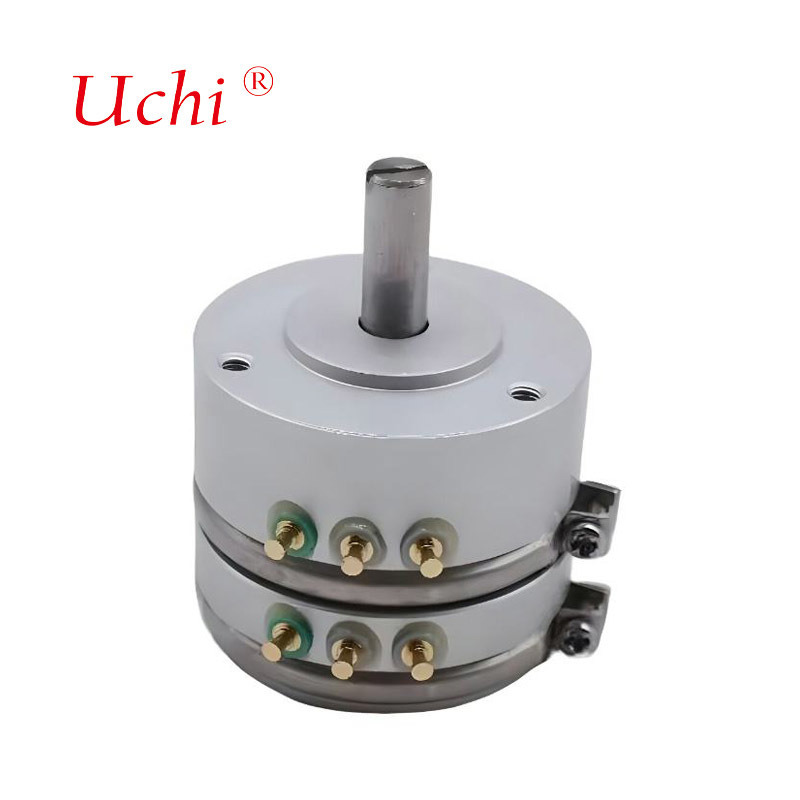

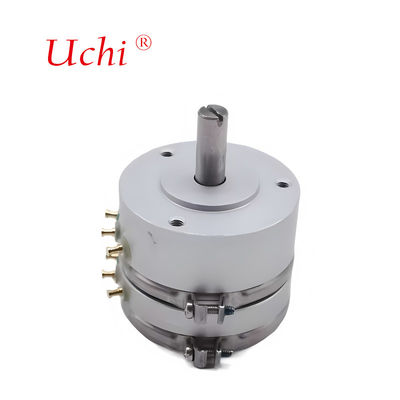

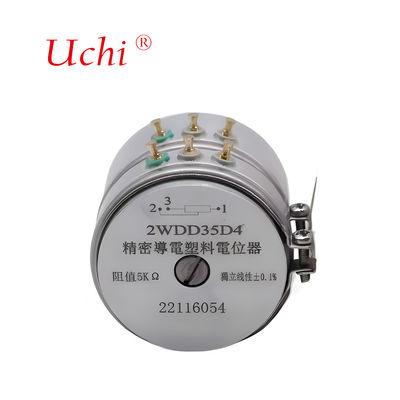

2WDD35D-4 10k Linear Dual Potentiometer Resistance Rotary Potentiometer
The 2WDD35D4 series products feature a hard aluminum alloy shell with conductive plastic resistance material, precision molded and laser-trimmed for optimal performance. Built with precious metal brush surge devices and stainless steel high-speed bearings, these potentiometers deliver long mechanical life, high resolution, smooth rotation, and low dynamic noise.
Product Features
- Hard anti-rust aluminum shell construction
- Molded integrated conductive plastic matrix
- Stainless steel shaft with high-speed bearings
- Precious metal brushes and current collector components
- High linear accuracy and long mechanical life
- Excellent resolution with low dynamic noise
Specification Parameters
| MAIN SPECIFICATION | |
|---|---|
| Total Resistance | 1K, 2K, 3K, 5K (Ω) |
| Resistance tolerance | ±15% |
| Independent Linearity | 0.1%, 0.2%, 0.3%, 0.5%, 1.0% |
| Output Smoothness | ≤±0.10% |
| Dielectric Strength | 1 minute at 1000V(AC.RMS) |
| Power Rate | 2W (@70°C) |
| Electrical Travel | 345°±2° |
| Resist. Temperature Coefficient Of Wire | ≤ ±400 P.P.M/°C |
| Insulation Resistance | ≥1000MΩ at 500V.D.C |
| MECHANICAL | |
| Mechanical Travel | 360°(Endless) |
| Starting Torque (MAX.) | 10x10-4N.M |
| Bearing | 2 Pairs Ball Bearing |
| Shaft | Stainless Steel |
| Housing Case | Aluminum alloy |
| Durable Performance | |
| Sliding life | Approx. 50,000,000(Shaft Revolutions) |
| Operating Temperature | -55°C~ +125°C |
| Vibration | 15G 2000Hz |
| Shock | 50G 11ms |
Product Size
Application Areas
Network communication equipment
Instrument equipment
Industrial machinery
Medical equipment
Injection molding machines
Crane torque control
Valves
Pedal testing
Robotic arms
Pan tilt control
Paper making machinery
Textile machinery
