The RV24YN20S Adjustable Resistor Precision Potentiometer Has A Protection Level Of IP67, Being Dust-proof And Water-proof
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Dongguan ， Quảng Đông, Trung Quốc |
| Hàng hiệu: | Uchi |
| Chứng nhận: | SMC |
| Số mô hình: | RV24YN-20S |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 100pcs |
|---|---|
| Giá bán: | có thể đàm phán |
| Điều khoản thanh toán: | T/T, paypal, Western Union, MoneyGram |
| Khả năng cung cấp: | 50000000pcs mỗi tháng |
|
Thông tin chi tiết |
|||
| Tổng phạm vi kháng cự: | B50Ω~B2MΩ A,C:1KΩ~2MΩ | Khả năng chịu đựng: | ± 10% |
|---|---|---|---|
| Kháng cự cuối: | ≤3Ω | kháng côn: | B(Tuyến tính) A(Logarit) C(Nhật ký ngược) |
| Khả năng chống thấm: | ≥100mΩ | Sức mạnh điện môi: | AC1000V 1 phút |
| Góc điện: | 280°±10° | ||
| Làm nổi bật: | RV24YN20S adjustable precision potentiometer,IP67 waterproof potentiometer,dust-proof precision potentiometer |
||
Mô tả sản phẩm

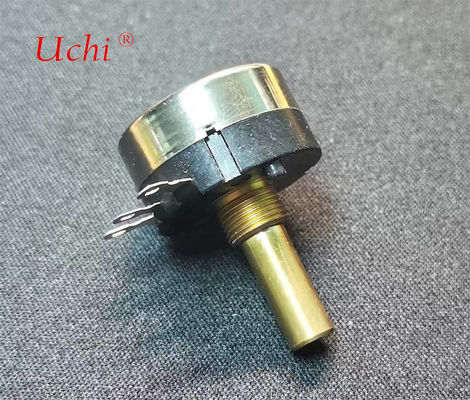

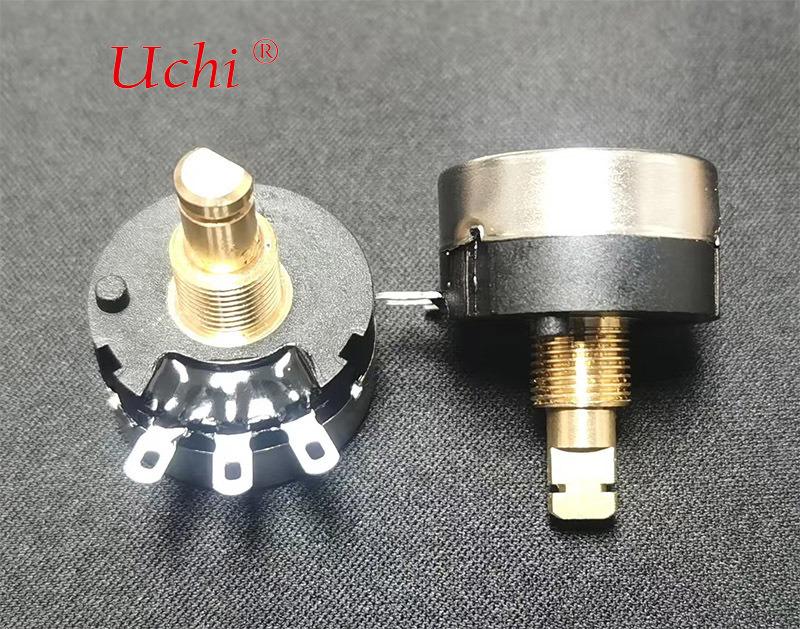

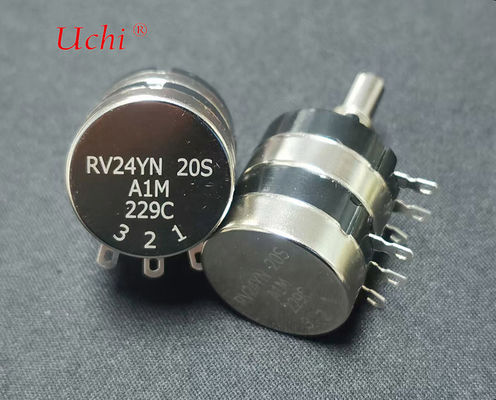

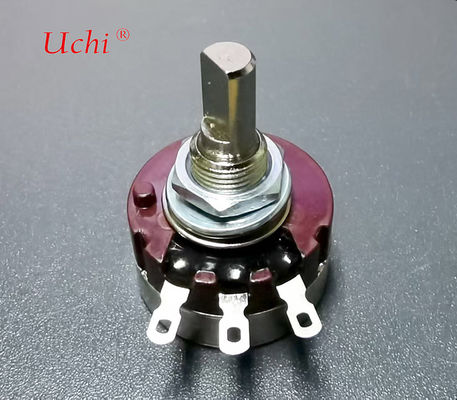

RV24YN20S Adjustable Resistor Precision Potentiometer with IP67 Protection
The RV24YN20S is a fully sealed adjustable resistor precision potentiometer featuring IP67 dust and water protection. This high-performance component offers excellent linear accuracy, long service life, and customizable installation dimensions to meet specific application requirements.
Key Features
- IP67 protection rating (dustproof and waterproof)
- High linear accuracy for precise control
- Long operational lifespan
- Customizable installation dimensions
- Compatible with Japanese TOCOS RV24YN specifications
- Wide range of applications including speed regulation, dimming, frequency converters, and medical equipment
Technical Specifications
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Rotation stopper strength | 900N・m min (9.18kgf・cm min) |
| Total rotation angle | 300°±5° |
| Rotational torque | 5-30mN・m (51-306gf・cm) |
| Key push-pull strength | Min: 8Kgf |
| Terminal strength | 5N for 1 minute |
Electrical Characteristics
| Parameter | Value |
|---|---|
| Total resistance | 1KΩ-2MΩ |
| Total resistance tolerance | ±10% |
| Residual resistance | 3Ω Max |
| Rated power at 40℃ | B: 0.4W (R≤1kΩ), 0.3W (1kΩ |
| Insulation resistance | 100MΩ min (DC 1,000V) |
| Dielectric proof | AC 1,000V 1 minute |
| Electrical angle | 280°±10° |
Environmental Performance
| Parameter | Value |
|---|---|
| Operating temperature range | -10°C to +85°C |
| Soldering performance | 235°C 5sec |
About Uchi Electronics Co., Ltd.
Uchi Electronics specializes in manufacturing high-quality electronic components including high-power resistors, wire-wound potentiometers, trimmer potentiometers, and precision potentiometric devices. With advanced production facilities and professional R&D teams, our products meet international quality standards and are exported to over 30 countries worldwide.
Shipping Options
We offer multiple shipping methods including express mail service, DHL Express, UPS, and FedEx to ensure safe and efficient delivery of your products.
Frequently Asked Questions
Are you a factory or a trading company?
We are a factory offering direct factory pricing without middlemen. We provide professional technical support and accept customized OEM & ODM orders.
Could you provide samples?
Samples are available upon request. Contact us to arrange sample delivery after placing your order.
Can your product be customized?
We accept OEM and ODM orders with varying customization requirements. Contact our customer service for specific details regarding minimum order quantities and pricing.
What is your delivery time?
Delivery times vary based on product quantity, production process, and model. We have multiple factories to handle simultaneous production and can accommodate urgent requests.
Do you offer after-sales service?
All products come with comprehensive after-sales support. Our team provides 24-hour assistance for any technical or quality issues.
Muốn biết thêm chi tiết về sản phẩm này
