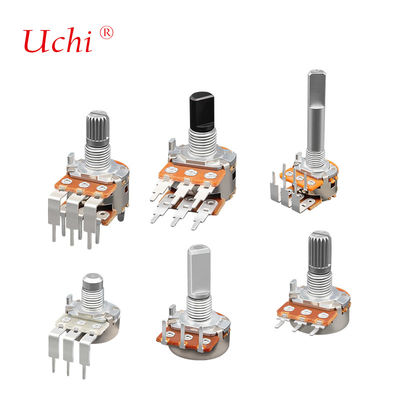

RD16 Metal Shaft Rotary Potentiometer RV16 Potentiometer CTR Precision Potentiometers
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Dongguan ， Quảng Đông, Trung Quốc |
| Hàng hiệu: | Uchi |
| Chứng nhận: | SMC |
| Số mô hình: | RD16 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 100pcs |
|---|---|
| Giá bán: | có thể đàm phán |
| Điều khoản thanh toán: | T/T, paypal, Western Union, MoneyGram |
| Khả năng cung cấp: | 50000000pcs mỗi tháng |
|
Thông tin chi tiết |
|||
| Tổng phạm vi kháng cự: | B50Ω~B2MΩ A,C:1KΩ~2MΩ | Khả năng chịu đựng: | ± 10% |
|---|---|---|---|
| Kháng cự cuối: | ≤3Ω | kháng côn: | B(Tuyến tính) A(Logarit) C(Nhật ký ngược) |
| Khả năng chống thấm: | ≥100mΩ | Sức mạnh điện môi: | AC1000V 1 phút |
| Góc điện: | 280°±10° | Quyền lực: | 0,05W |
| Nhiệt độ làm việc: | -10oC ~ 70oC | Tổng góc quay: | 300°±10° |
| Làm nổi bật: | RV16 metal shaft potentiometer,precision rotary potentiometer,CTR potentiometer with warranty |
||
Mô tả sản phẩm
High-precision RD16 series potentiometers with switch functionality, designed for professional audio equipment, home appliances, lighting control systems, and various electronic devices.
| Dimensions | 17mm |
|---|---|
| Total rotational angle | 300°±10° |
| Rated power | 0.05W |
| Maximum operating voltage | AC 50V/ DC 20V |
| Operating temperature | -10℃ ~70℃ |
| Rotational life | 10,000 cycles (Min) |
- Smooth rotation with reliable performance
- Multiple variants available
- Functions include volume adjustment, voltage regulation, temperature control, and speed regulation
- Integrated switch for power on/off control
- Rotational Torque: 20~200gf.cm
- Total Rotational Angle: 300°±10°
- Shaft Stop Strength: ≥3.0Kgf.cm
- Shaft Wobble (mm p-p): Within(0.7xL/20)mm p-p
- Total Resistance Range: 1KΩ＜R＜1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
- Resistance Taper: A/B/C
- Rated Power: 0.05W
- Maximum Operating Voltage: AC 50V/ DC 20V
- Residual Resistance: R1,2≤10Ω; R2,3≤20Ω
- Insulation Resistance: 100MΩ 1 Minute at DC 100V
- Dielectric Voltage: 1 Minute at AC 250V
- Rotational life: 10,000 cycles (Min)
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
Uchi Electronics specializes in manufacturing high-quality electronic components including high-power resistors, wire-wound potentiometers, trimmer potentiometers, and precision potentiometric devices. With advanced production facilities and professional R&D teams, our products meet international quality standards and are exported to over 30 countries worldwide.
We offer multiple shipping methods including express mail service, DHL Express, UPS, and FedEx to ensure safe and efficient delivery of your products.
We are a factory offering direct factory pricing without middlemen. We provide professional technical support and accept customized OEM & ODM orders.
Samples are available upon request. Contact us to arrange sample delivery after placing your order.
We accept OEM and ODM orders with varying customization requirements. Contact our customer service for specific details regarding minimum order quantities and pricing.
Delivery times vary based on product quantity, production process, and model. We have multiple factories to handle simultaneous production and can accommodate urgent requests.
All products come with comprehensive after-sales support. Our team provides 24-hour assistance for any technical or quality issues.
