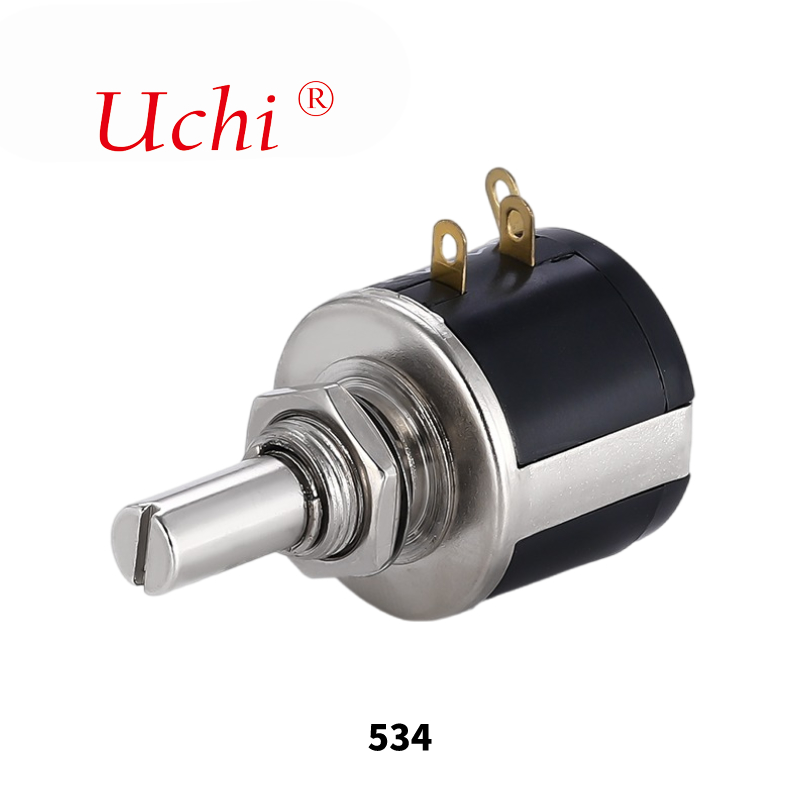

534 Multi-turn Wire Wound Precision Potentiometer 10KΩ 2W
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Dongguan ， Quảng Đông, Trung Quốc |
| Hàng hiệu: | Uchi |
| Chứng nhận: | SMC |
| Số mô hình: | 534 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 100pcs |
|---|---|
| Giá bán: | có thể đàm phán |
| Điều khoản thanh toán: | T/T, paypal, Western Union, MoneyGram |
| Khả năng cung cấp: | 50000000pcs mỗi tháng |
|
Thông tin chi tiết |
|||
| Loạt: | 534 | Kích thước / Kích thước: | 22*18mm |
|---|---|---|---|
| Khả năng chịu đựng: | ± 5% | Điện trở cách nhiệt: | ≥ 200MΩ |
| Phạm vi nhiệt độ: | -55°C~+125°C | Phạm vi kháng danh nghĩa: | 100~100KΩ |
| Góc điện: | 3600°±10° | Đặc trưng: | Vết thương dây |
| Sức mạnh định mức: | 2W (70°C) | ||
| Làm nổi bật: | 10KΩ precision potentiometer,wire wound potentiometer 2W,multi-turn precision potentiometer |
||
Mô tả sản phẩm

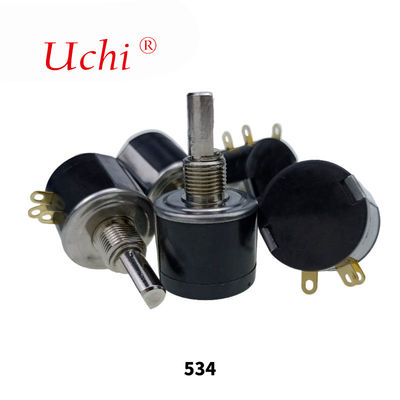

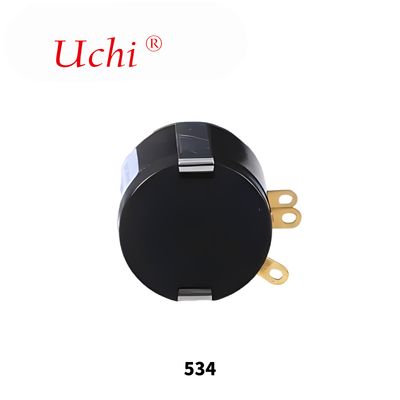

534 Multi-turn Wire Wound Precision Potentiometer 10KΩ 2W
Precision potentiometer/winding potentiometer/multi-turn potentiometer/2W potentiometer. 534 Multiturn Potentiometer Wirewound Potentiometer 10-Turn Potentiometer 2W Potentiometer.
Product Features
- Good thermal resistance, can withstand greater power
- High accuracy and small noise
- Excellent performance at competitive price
- Resistance range: 100Ω to 100KΩ
- Resistance tolerance: ±5%
- Independent linear accuracy: ±0.2%
- Electronic travel: 3600°±10%
- Rated power: 2W
- Rotating life: 1,000,000 rpm
- Operating temperature: -55℃ to +125℃
Product Dimensions
Specification Parameters
| Characteristics | Value |
|---|---|
| Range of nominal resistance | 100~100KΩ |
| Resistance tolerance | ±2%, ±5% |
| Terminal resistance | ≤2%R or 5Ω |
| Peak noise | ≤100Ω |
| Linear accuracy | ±1%, ±0.5% |
| Electrical angle | 3600°±10° |
| Insulation resistance | ≥200MΩ |
| Withstand voltage | 500V (DC or AC peak value) |
Environmental Specifications
| Characteristics | Value |
|---|---|
| Rated power | 2W (70°C) |
| Temperature range | -55°C~+125°C |
| TCR | ±100×10-6/°C |
| Temperature shock | ΔR≤±3%R |
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, Electrical break≤100μS |
Physical Characteristics
| Characteristics | Value |
|---|---|
| Total mechanical travel | 3600°±10° |
| Rotational torque | 2~10mN.m |
| Stopper torque | ≥300mN.m |
Applications
This product is widely used in fields such as displays, visual doorbells, visual walkie talkies, mobile phones, cordless telephones, radio frequency heads, electronic tuners, remote controls, instruments, power supplies, communication, medical equipment, power equipment, railway signaling, and aviation.
Shipping Options
We offer multiple shipping methods including express mail service, DHL Express, UPS, and FedEx for safe and efficient delivery.
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Varies by quantity and model, with urgent request accommodation.
Do you offer after-sales service?
Comprehensive 24-hour support for all products.
