RV30YN20S Single-turn Carbon Film Adjustable Resistor Rotary Potentiometer 50k Frequency Converter Speed Regulation
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Dongguan ， Quảng Đông, Trung Quốc |
| Hàng hiệu: | Uchi |
| Chứng nhận: | SMC |
| Số mô hình: | RV30YN20S |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 100pcs |
|---|---|
| Giá bán: | có thể đàm phán |
| Điều khoản thanh toán: | T/T, paypal, Western Union, MoneyGram |
| Khả năng cung cấp: | 50000000pcs mỗi tháng |
|
Thông tin chi tiết |
|||
| Sức chống cự: | B 50Ω-2MΩ \ AC 1KΩ-2MΩ. | Kích thước / Kích thước: | 30*20mm |
|---|---|---|---|
| Khả năng chịu đựng: | ± 10% | Sự miêu tả: | Chiết áp màng carbon một vòng |
| Quyền lực: | 3W | Kiểu: | Rẽ đơn |
| Đột quỵ cơ học: | 300°±5° | Cuộc sống luân chuyển: | 15.000 lượt |
| Vật liệu: | phim carbon | Phạm vi nhiệt độ: | -10oC--85oC |
| Làm nổi bật: | single-turn carbon film potentiometer,50k rotary potentiometer speed regulation,frequency converter adjustable resistor |
||
Mô tả sản phẩm

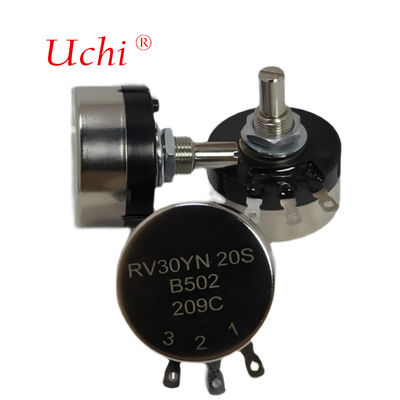

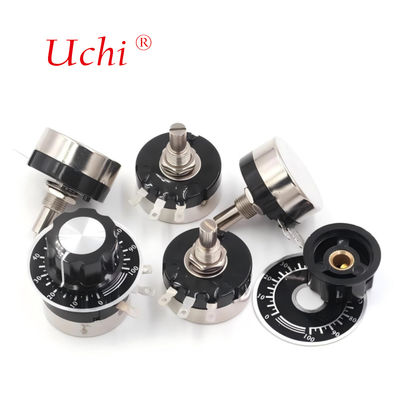

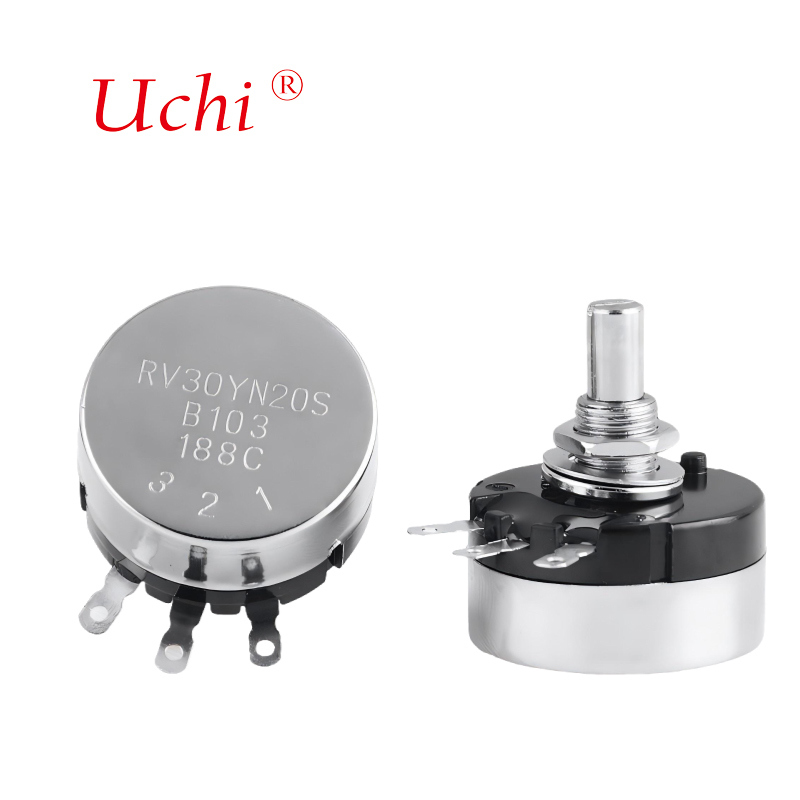

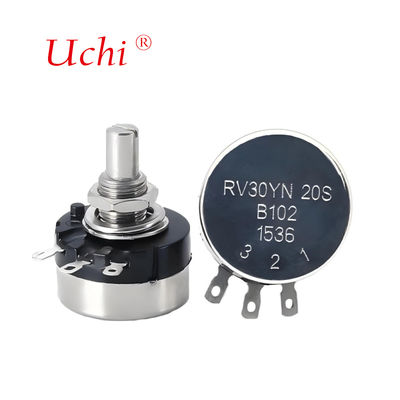

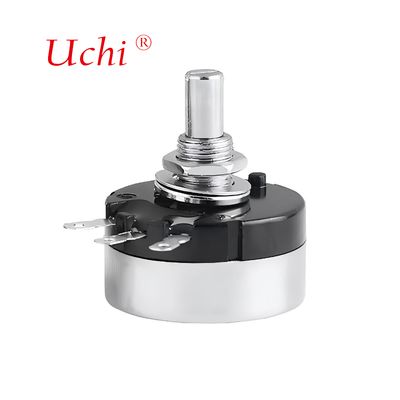

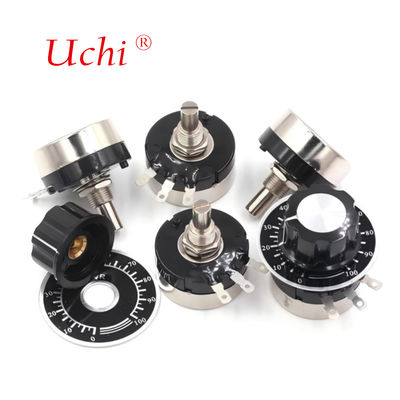

RV30YN20S Single-turn Carbon Film Adjustable Resistor Rotary Potentiometer
The RV30YN20S is a single coil carbon film potentiometer designed for frequency converter speed regulation. Rated power 3W with shaft diameter 6mm and length 20mm. Features include outer diameter 30mm, slotted shaft end, resistance tolerance ±10%, mechanical stroke 300°±5°, temperature range -10℃ to +85℃, and rotational life of 20,000 revolutions.
Product Specifications
Electrical Specifications
| Standard Resistance Range | B = 100 to 2M A,C = 1k to 2M |
|---|---|
| Resistance Tolerance | 10% standard |
| End Resistance | 3ohm max. |
| Resistance Taper | B = linear; A = CW audio (logarithm); C = CCW audio (logarithm) |
| Peak Noise (C.R.V.) | 3% or 3ohm, whichever is greater |
| Power Rating | Ratings below at +40℃, 0 watt at +85℃ |
Power Rating by Taper
| Taper | R≤10k | 10k| 50k | R>300k |
|
|---|---|---|---|---|
| B | 1.0W | 0.8W | 0.6W | 0.4W |
| A,C | 0.8W | 0.6W | 0.3W | 0.2W |
Mechanical Specifications
| Mechanical Travel | 300°±5° |
|---|---|
| Shaft Torque | 51 to 306 gf•cm (0.707 to 4.242 oz•in) 51 to 510 gf•cm (0.707 to 7.070 oz•in) |
| Stop Strength | 10.2 kgf•cm (141.4 oz•in) max. |
| Mounting Nut Torque | 15 kgf•cm (207.94 oz•in) max. |
Key Features
- 30mm diameter, single-turn industrial panel controls
- Carbon film element with linear or audio tapers
- Available in single, tandem and triple units with single shaft options
- SPST or SPDT switch with 1A or 3A rating
- Shaft lock models with metal shaft and bushing
- Panel mount only with right angle ear-lug terminals
- 6mm diameter shafts in slot, flat or round end styles
- Standard 15mm or 20mm shaft length
Product Dimensions
Applications
The RV30YN20S potentiometer is widely used in instruments, precision mechanical equipment, welding equipment, audio equipment, automation systems, communication devices, medical facilities, frequency converters, game consoles, and UPS power supplies.
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
Muốn biết thêm chi tiết về sản phẩm này
