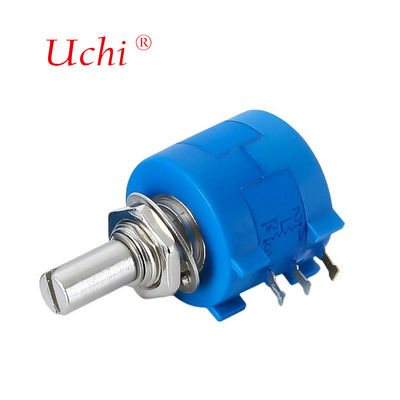

3590 Multi-turn Wire-wound Precision Rotary Potentiometer 10k Ohm 5% 2w
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Dongguan ， Quảng Đông, Trung Quốc |
| Hàng hiệu: | Uchi |
| Chứng nhận: | SMC |
| Số mô hình: | 3590 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 100pcs |
|---|---|
| Giá bán: | có thể đàm phán |
| Điều khoản thanh toán: | T/T, paypal, Western Union, MoneyGram |
| Khả năng cung cấp: | 50000000pcs mỗi tháng |
|
Thông tin chi tiết |
|||
| Sức chống cự: | 10K | Khả năng chịu đựng: | ± 5% |
|---|---|---|---|
| Điện trở cách nhiệt: | ≥ 200MΩ | Phạm vi nhiệt độ: | -55°C~+125°C |
| Tổng hành trình cơ học: | 3600°±10° | Công suất định mức: | 2W (70°C) |
| Kích thước / Kích thước: | 22*38mm | ||
| Làm nổi bật: | 10k ohm precision rotary potentiometer,multi-turn wire-wound potentiometer,2w precision potentiometer with warranty |
||
Mô tả sản phẩm
3590 Multi-turn Wire-wound Precision Rotary Potentiometer 10k Ohm 5% 2w
The 3590 series Potentiometer is a multi turn wound Potentiometer. The precision potentiometer 3590S is suitable for circuit adjustment of various electronic equipment, and is commonly used to measure the linear distance, angle or rotation of production equipment, industrial testing and measuring equipment and medical equipment. The 3590S Potentiometer is made of high-quality materials with high precision and long service life.
Specification Parameters
| Characteristics | Value |
|---|---|
| Range of nominal resistance | 10K |
| Resistance tolerance | ±5% |
| Terminal resistance | ≤2%R or 5 |
| Peak noise | ≤100 |
| Linear accuracy | ±0.25% |
| Electrical angle | 3600°±10° |
| Insulation resistance | ≥ 200M |
| Withstand voltage | 500V (DC or AC peak value) |
Environment Specifications
| Characteristics | Value |
|---|---|
| Rated power | 2W (70°C) |
| Temperature range | -55°C~ 125°C |
| TCR | ±100x10-6/°C |
| Temperature shock | R≤±3%R |
| Collision (390m/S2, 4000 times) | R≤±1%R |
| Moisture proof | R≤±3%R, Insulation Resistance≥100M |
| Vibration (10-500HZ, 0.75mm, 6h) | R≤±1%R, Electrical break≤100S |
Physical Characteristics
| Characteristics | Value |
|---|---|
| Total mechanical travel | 3600°±10° |
| Rotational torque | 2~10mN.m |
| Stopper torque | ≥300mN.m |
Product Details
- Potentiometer type: Multi turn potentiometer
- Potentiometer material: wire wound

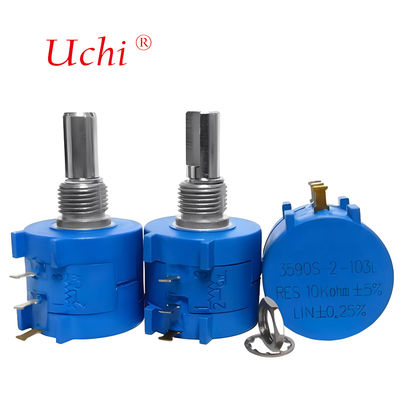

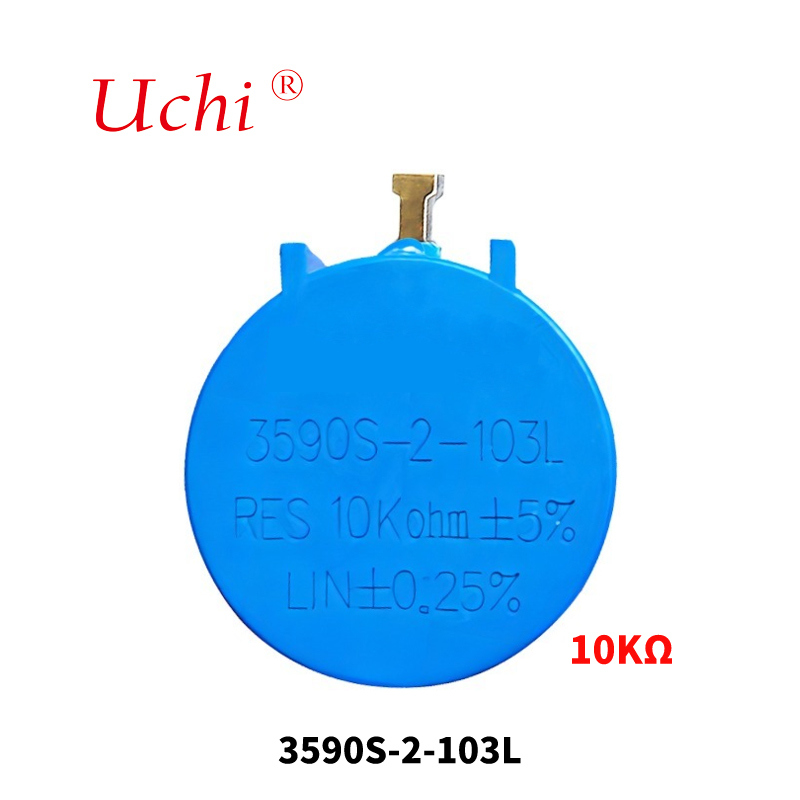

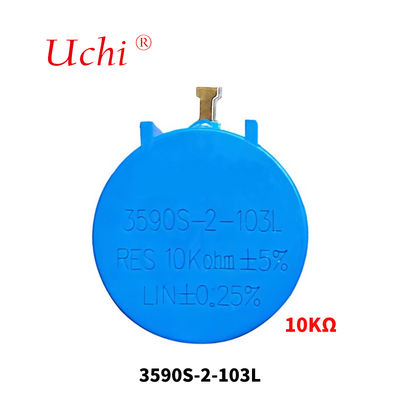

- Model: 3590S-2-103L
- Resistance: 10K Ω
- Permissible resistance range: ±5%
- Electrical rotation angle: 3600°±10° (10 turn)
- Rated power: 2W (70℃)
- Temperature range: -55℃~+125℃

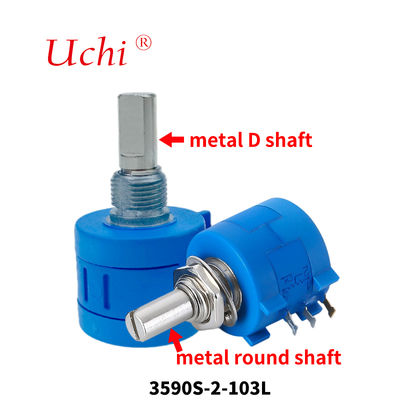

- Shaft type: Circular shaft D shaft
- Shaft material: metal shaft
- Shaft diameter: 6.3mm
- Shaft length: 20mm
- Resistance value variation mode: linear
- Packaging: 25 pieces/board, 50 pieces/box, 12 boxes/large box

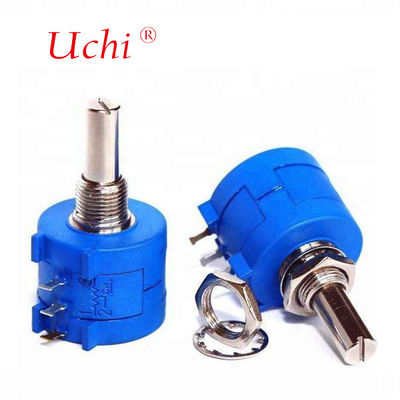

- Accessories: 3590S potentiometer matching nut and washer
Product Size
Application Area
The 3590S wire wound multi turn potentiometer is widely used in fields such as displays, visual doorbells, visual walkie talkies, mobile phones, cordless phones, radio frequency heads, electronic tuners, remote controls, instruments, power supplies, communication, medical equipment, electrical equipment, railway signals, aviation, etc.
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
- Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support. - Could you provide samples?
Samples are available upon request after order placement. - Can your product be customized?
We accept OEM/ODM orders with flexible requirements. - What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible. - Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
Muốn biết thêm chi tiết về sản phẩm này
