WX14-12 3w Single-turn Wire-wound Rv12mm Rotary Potentiometer
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Dongguan ， Quảng Đông, Trung Quốc |
| Hàng hiệu: | Uchi |
| Chứng nhận: | SMC |
| Số mô hình: | WX14-12 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 100pcs |
|---|---|
| Giá bán: | có thể đàm phán |
| Điều khoản thanh toán: | T/T, paypal, Western Union, MoneyGram |
| Khả năng cung cấp: | 50000000pcs mỗi tháng |
|
Thông tin chi tiết |
|||
| Công suất định mức: | 3W | Sức chống cự: | 1Ω~22KΩ |
|---|---|---|---|
| Khả năng chịu đựng: | ±5%,±10% | Kích thước / Kích thước: | 24*35mm |
| Đường kính trục: | 6mm | Số lượt: | 1Rẽ |
| Vòng đời (không tải) Chu kỳ: | 10000 | Góc quay: | 300° |
| Làm nổi bật: | 3W wire-wound potentiometer,RV12mm rotary potentiometer,single-turn precision potentiometer |
||
Mô tả sản phẩm

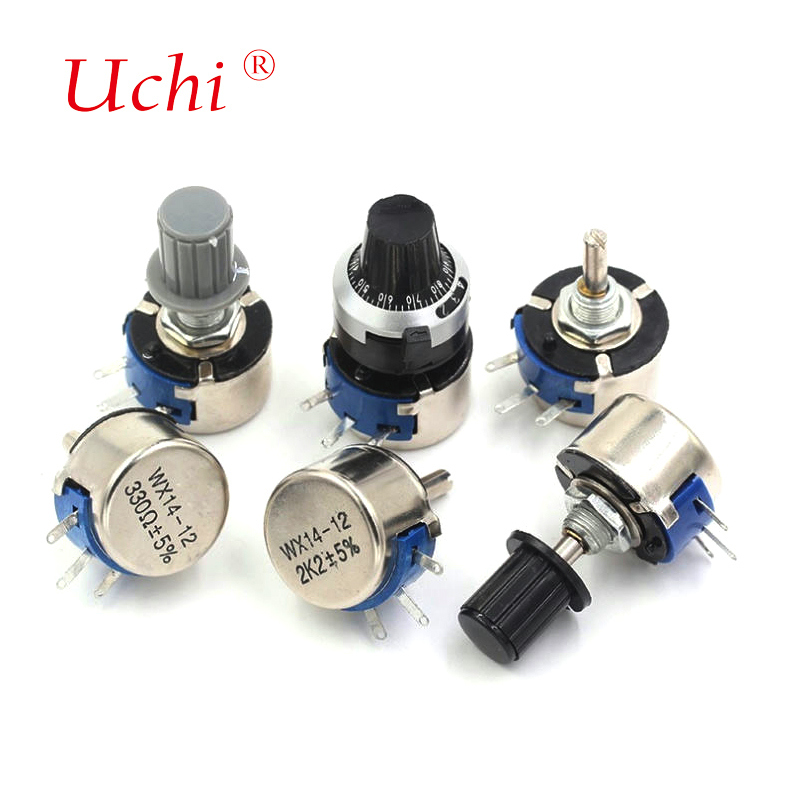

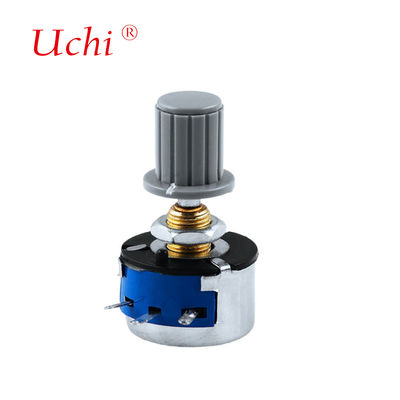

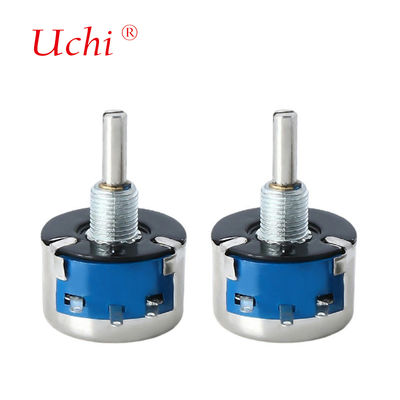

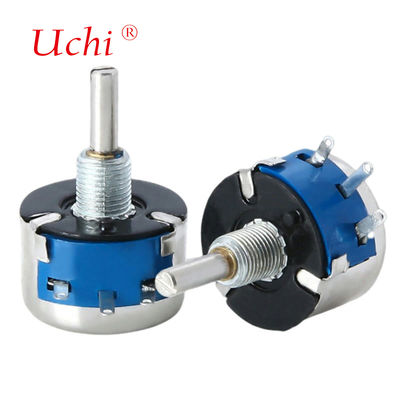

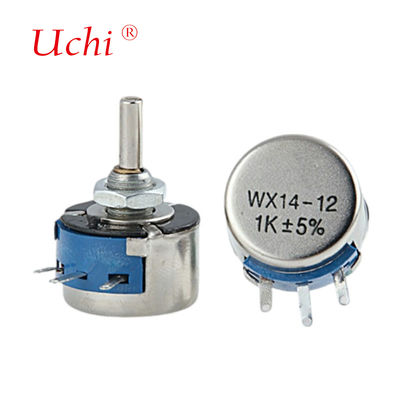

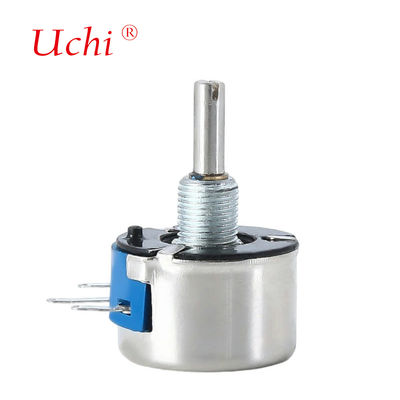

WX14-12 3W Single-turn Wire-wound RV12mm Rotary Potentiometer
The WX14-12 single-circle wire winding power unit features a power rating of 3W, axis diameter of 4mm, outer circular diameter of 24mm, and open hole of 8.3mm. With an accuracy of ±5% and knob angle of 300°, this potentiometer offers multiple resistance options from 27Ω to 20K.
Specification Parameters
| Product Name | Single turn wirewound potentiometer |
|---|---|
| Model | WX14-12 |
| Resistance | ±5%,±10% |
| Package Diameter | 24mm |
| Shape | Round |
| Number of Turns | 1 turn |
| Sealable | IP40 |
| Shaft | Nickel plated rail |
| Element | Wirewound |
| Terminal | Solder lug |
| Taper-Linear | X |
| Linearity | ±5%~±10% |
| Resistance-Minimum | 1Ω |
| Resistance-Maximum | 22k |
| Tolerance Resistance | ±5%/±10% |
| Power-Rating | 3W |
| Angle of Rotation | 300° |
| Rotational Life (No Load) Cycles | 10000 |
| Shaft Diameter | 4mm |
| Shaft Length | 20mm |
| Panel Diameter | 23mm |
Product Features
- Silver contact copper parts enhance frequency response and conductor performance
- Durable thick iron shell material provides high mechanical strength and weather resistance
- Multiple resistance options available with custom values upon request
Product Size
Application Area
The WX14-12 single coil wire wound potentiometer is primarily used for voltage or current adjustment. This wire-wound potentiometer features resistance wire wound on an insulated frame, with adjustable resistance via shaft rotation. Commonly used in audio equipment, power supplies, and other electronic devices for volume control and signal adjustment.
