Distribution Type Metal Oxide Polymer Lightning 10kv Surge Arrester
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Dongguan ， Quảng Đông, Trung Quốc |
| Hàng hiệu: | UCHI |
| Chứng nhận: | SGS.UL |
| Số mô hình: | YH10W-10 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 5000pcs |
|---|---|
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Số lượng lớn |
| Thời gian giao hàng: | 5-7 ngày |
| Điều khoản thanh toán: | T / T, Paypal, Western Union, Money gram |
| Khả năng cung cấp: | 5000.000.000 chiếc mỗi tháng |
|
Thông tin chi tiết |
|||
| Làm nổi bật: | 10kv metal oxide surge arrester,polymer lightning surge arrester,distribution type metal oxide varistor |
||
|---|---|---|---|
Mô tả sản phẩm

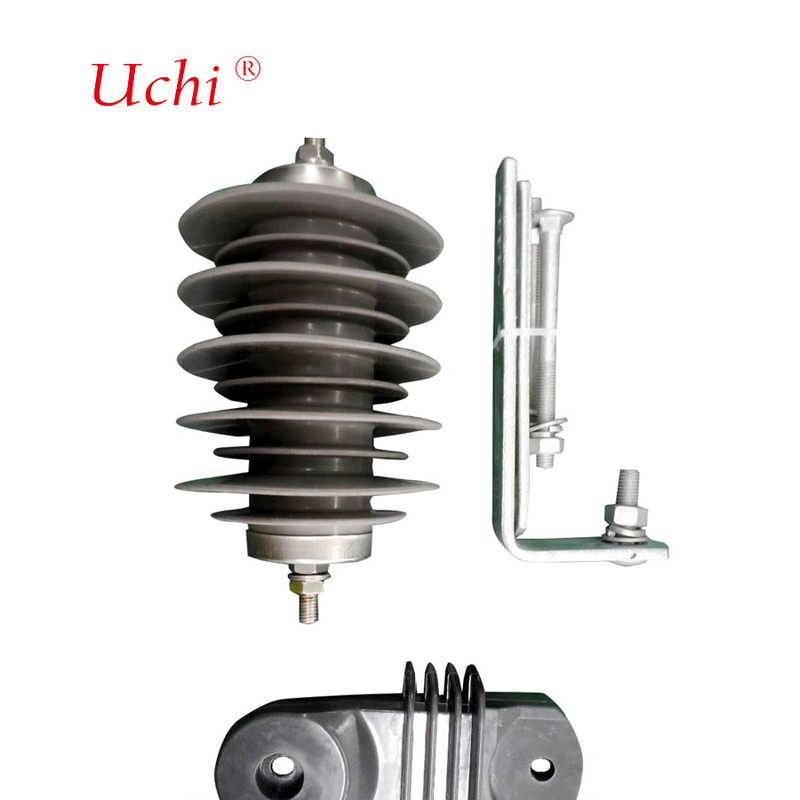

Distribution Type Metal Oxide Polymer Lightning 10kv Surge Arrester
Polymer lightning 10kV surge arrester is mainly applicable for protection of the power equipment like transformers against system over-voltages and lightning surges. It is manufactured with excellent voltage-ampere characteristics and high level of reliability and durability. And the arrester is designed and type tested according to IEC60099-4: 2004 standard.
Product Information:
Product name: distribution type metal oxide polymer lightning 10kv surge arrester
Type: YH10W-10
Material: polymer housing metal oxide
| Type | Rated Voltage | Max Continous Operating Voltage | Residual Voltage | 2ms square wave impulse current withstand | |||
| Steep Current Impulse | Switching Current Impulse | Lightning Current Impulse | 4/10us high current tolerance | ||||
| YH10W-10 | 10kV | 8.4kV | 36kV | 23kV | 30KV | 400A | 100KA |
Advantages of Silicon Rubber Housing
-The silicon rubber were injected or vulcanized on to the varistor fiber glass winding core directly form a tight complete arrester, There is no air gap inside, which prevents partial discharge and prolongs the electric life, thus having high operational reliability.
-Silicon rubber will not explode or crack like a ceramic jacket when bear overload.
Because arc combustion can travel small holes in the silicon rubber shell, the arrester can easily release energy and easily find overload.
-Silicon rubber is hydrophobic and anti-fouling and doesn't form the surface layer of a semiconductor as quickly as any other insulators. Therefore, the leakage current on the surface of silicon rubber housing is very low.
One of the key features of our 10kV Surge Arrester is its high-quality construction. We use only the best materials and components in our surge arresters, ensuring that they are durable, reliable, and long-lasting. Our surge arresters are also designed to withstand harsh environmental conditions, making them suitable for use in outdoor applications.
Another feature of our surge arresters is their low residual voltage. This means that the voltage level of the surge after it has been diverted to the ground is kept to a minimum, providing excellent protection for your electrical system. Our surge arresters also have a high discharge current capacity, which means that they can handle large surges without being damaged.
We understand that safety is a top priority for our customers, which is why we have designed our 10kV Surge Arrester with several safety features. For example, our surge arresters have built-in thermal disconnection devices that prevent them from overheating in the event of a prolonged surge. They also come with visual indicators that show when they are in operation or require maintenance.
